Highly Integrated Portable Laser Cleaning Machine 120W 200W For Surface Treatment

120W/200W It Is A Highly Integrated, Portable Laser Surface Treatment Device

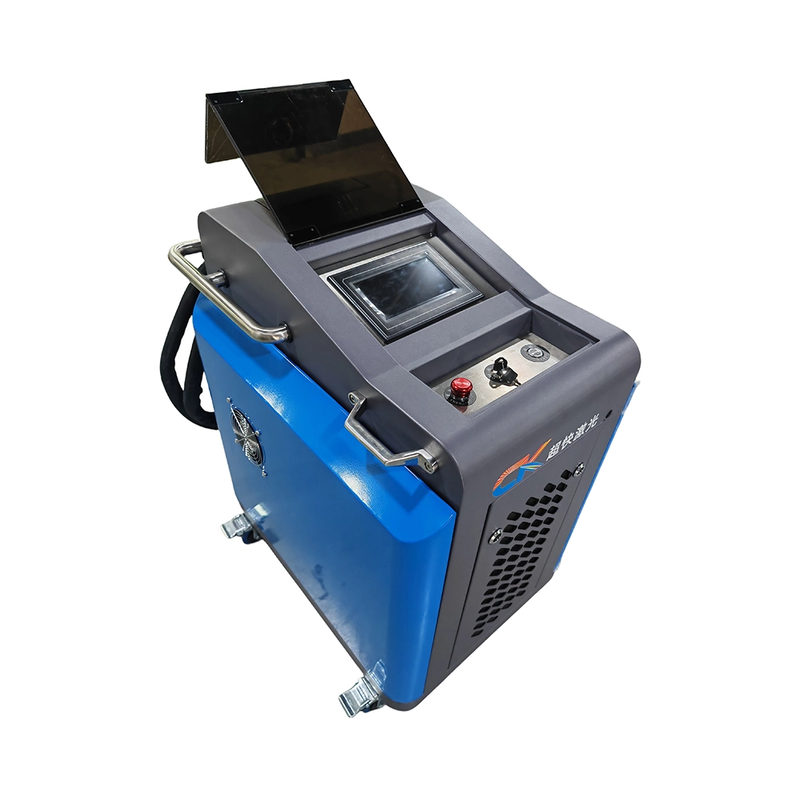

1. Product Description: The portable laser cleaning machine is a highly integrated and mobile laser surface treatment device. It integrates a pulsed fiber laser, cooling system, control system, and dust removal device into a compact housing, and is equipped with a handheld laser cleaning gun, forming a complete mobile workstation. Its core design aims to bring laboratory-grade laser cleaning technology to any location where it is needed. Through human-machine collaboration, it achieves precise, non-destructive, and environmentally friendly cleaning of localized or small areas of workpieces, making it particularly suitable for scenarios where fixed equipment is difficult to cover.

2. Product Applications: This equipment is designed for cleaning tasks requiring mobility, flexibility, and on-site immediate processing. It is mainly used for:

On-site maintenance and repair: On-site paint removal, rust removal, and weld cleaning of large structures such as ships, bridges, construction machinery, and petrochemical equipment;

Mold maintenance: Medium and large injection and die-casting molds can be maintained and cleaned directly on the production line without disassembly or transportation;

Pre- and post-weld treatment: Bevel cleaning (rust removal, oxide scale removal) before on-site welding construction and weld cleaning (removal of oxide color and welding slag) after welding;

Precision cleaning in specific areas: meticulous cleaning and restoration of precision parts, electrical equipment contacts, cultural heritage (partial), artworks, etc;

Small batch and multi-variety processing: suitable for repair workshops, R&D laboratories, small processing plants and other occasions where frequent changes in cleaning objects and processes are required.

3. Product advantages: Ultimate mobility and flexibility: The integrated design with wheels allows it to be pushed or carried by hand/on the shoulder, enabling it to quickly reach any work point and solving the problem of large workpieces being unable to move or being limited by fixed workstations;

Simple and quick to operate: Plug and play, handheld operation, no complicated programming or tooling fixtures required, you can start cleaning as quickly as using a high-end power tool, and the skill requirements for operators are relatively low;

Non-destructive cleaning and environmental protection: Maintaining the core advantages of laser cleaning—non-contact, non-damaging, and free of chemical pollution—it protects the substrate and keeps the work site clean;

High cost-effectiveness and rapid response: No need to invest in large fixed equipment and dedicated sites, low investment threshold. It can respond to sudden or temporary cleaning needs at any time, offering high overall cost-effectiveness.

4. Product Features: Handheld Precision Cleaning: Using a handheld laser gun, the operator can freely and flexibly perform precise cleaning on any part of the workpiece, especially suitable for complex curved surfaces, corners, and crevices;

Quick Adjustment of Multiple Parameters: The control panel (usually integrated into the main unit or handheld gun) allows for quick switching between preset cleaning process parameters (power, frequency, pulse width) to adapt to different materials and contaminants;

Real-Time Process Observation: The handheld gun typically integrates a coaxial red indicator light or camera, allowing for precise positioning of the cleaning area and real-time observation of the cleaning effect;

Integrated Dust Removal: Built-in or external small, high-efficiency fume extraction devices instantly absorb trace amounts of dust generated during cleaning, keeping the work area clean.

5. Product Precautions: When operating handheld, professional laser safety goggles with the specified wavelength must be worn at all times.

Never point the laser head at a person, other individuals, or any reflective surface. Warning signs must be posted in the work area to prevent unauthorized personnel from entering;

Operators must wear protective masks (even with dust removal equipment);

Pay attention to the equipment's power supply requirements, ensure proper grounding, and avoid use in extreme temperature, humidity, or dusty environments.

6. After-sales service: Warranty policy: The entire unit typically comes with a 12-month standard warranty. The laser module, as a core component, usually enjoys a separate warranty period of 24-36 months;

Technical support: Remote technical guidance is provided to assist in resolving common parameter setting and equipment connection issues;

Repair service: Due to the high integration of the equipment, core repairs require return to the factory or be performed by authorized engineers. Non-human-caused faults are repaired free of charge during the warranty period. Outside the warranty period, paid repair and component replacement services are provided;

Spare parts and consumables: Supply of easily damaged parts and consumables such as laser protective lenses, dust filters, and fiber optic connectors is provided.
