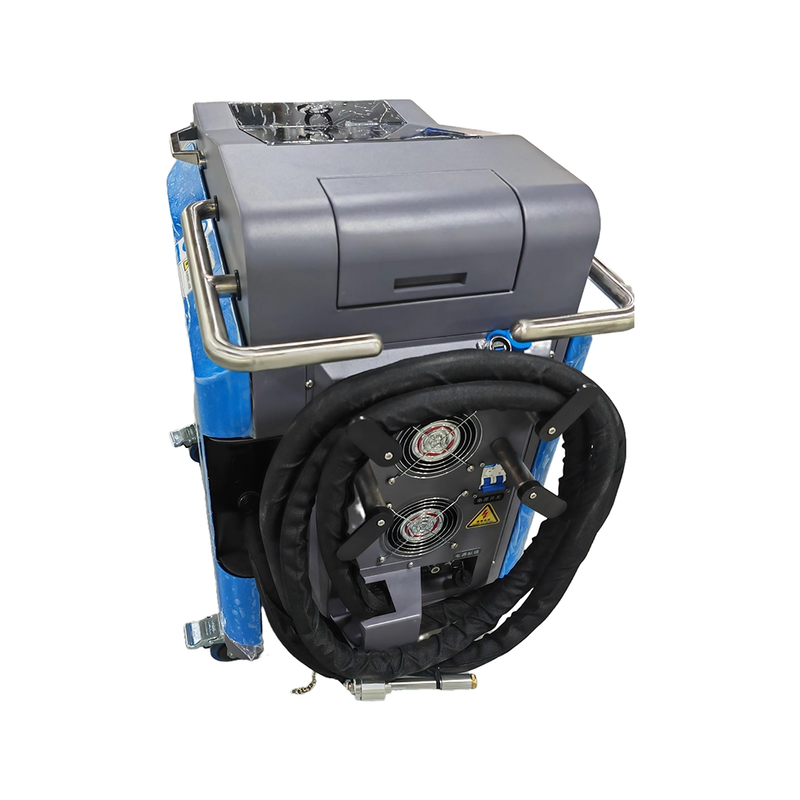

High Energy Laser Surface Cleaning Machine Beam Surface Contaminant Removal For Materials

Using High-Energy Laser Beams To Remove Surface Contaminants From Materials.

1.Product Description: Laser surface cleaning machines are advanced "dry" cleaning devices that utilize high-energy pulsed laser beams of specific wavelengths to irradiate the surface of workpieces. This allows surface contaminants (such as oil, rust, coatings, oxides, and particles) to be instantly removed within a very short time through mechanisms such as vibration, vaporization, peeling, or phase change, without damaging the substrate material. Based on precise control of the interaction between laser and matter, it achieves a leap from "macroscopic cleaning" to "microscopic cleaning," representing a revolutionary technology in the field of surface treatment.

2.Product Applications: High-end Manufacturing and Welding: Pre-welding (removal of oil and oxide film) and post-welding (removal of oxide color and weld slag) cleaning significantly improves welding quality;

Precision Parts and Molds: Cleans precision mechanical parts, injection/die-casting/rubber molds, removing release agent residue and carbon deposits, restoring mold texture;

Corrosion Protection and Pre-coating Treatment: Removes rust, old paint, and stains from metal surfaces, providing an absolutely clean, active surface for spraying, electroplating, and bonding, enhancing adhesion;

Rubber and Composite Materials: Removes release agents from rubber surfaces and contaminants from composite material surfaces, optimizing bonding performance;

Cultural Relics and Artwork Restoration: Non-destructively removes rust, dirt, and aged coatings from metal and stone cultural relics;

Electronics and Semiconductors: Precision cleaning of microscopic contaminants on the surfaces of electrodes, lead frames, and semiconductor components;

3.Product Advantages: Absolutely Non-Destructive to Substrate: Laser parameters can be precisely controlled for selective cleaning, removing only contaminants without damaging or altering the microstructure and physical properties of metals or other substrates, maintaining the original precision of the workpiece;

Extremely Green and Environmentally Friendly: The entire process requires no chemicals, water, abrasives, or media, resulting in no wastewater or waste residue emissions. Only trace amounts of dust are handled by a dust removal system, ensuring a clean and safe working environment;

Highly Efficient, Precise, and Flexible: Non-contact operation, adaptable to handheld guns, robotic arms, or automated platforms, handling complex geometries, micropores, and crevices. High cleaning efficiency and excellent consistency;

Economical Operating Costs: Primarily consumes electricity; no continuous investment in consumables (such as chemicals, abrasives, or wiping cloths) results in low overall long-term operating costs and simple maintenance.

4.Product Functions: Comprehensive Cleaning: Effectively removes grease, dust, rust, oxide layers, paint coatings, carbon deposits, mold release agent residue, microorganisms, and other organic and inorganic contaminants;

Surface Activation: While cleaning, the laser creates microscopic roughness and purification on the metal surface, significantly improving the adhesion and quality of subsequent spraying, bonding, and welding;

Selective Fine Processing: Enables micro-area, patterned, or layered cleaning (e.g., removing topcoat while retaining primer), suitable for precision repair and marking;

Automation Integration: Supports synchronization with robots, CNC machine tools, and production lines, achieving fully automated, batch, and online cleaning operations.

5.Product Precautions: Direct laser beam exposure to the human body, eyes, or flammable and explosive materials is strictly prohibited;

All fumes/aerosols generated during cleaning must be extracted and filtered by the equipment's high-efficiency dust removal and purification system to ensure air quality and operator health in the working environment;

For new materials or new contaminants, small-area parameter testing must be conducted first to determine the optimal power, frequency, and scanning speed to avoid unnecessary damage to the workpiece;

Keep the laser output head, focusing lens, protective window, and other optical components clean, and conduct regular inspections and maintenance;

Ensure the equipment operates in an environment with suitable temperature and humidity, and a stable power supply.

6.After-sales service: Warranty policy: The entire machine typically comes with a 12-24 month warranty (subject to the contract). Core components, such as the laser, usually enjoy a longer warranty period;

Technical support: On-site installation, commissioning, operation, and basic maintenance training are provided. Remote (telephone, online support) and on-site technical guidance are available to assist in resolving process and application issues;

Repair and spare parts: Free repairs are provided for non-human-caused faults during the warranty period. Outside the warranty period, timely paid repair services and original spare parts supply are provided to ensure continuous equipment operation.
